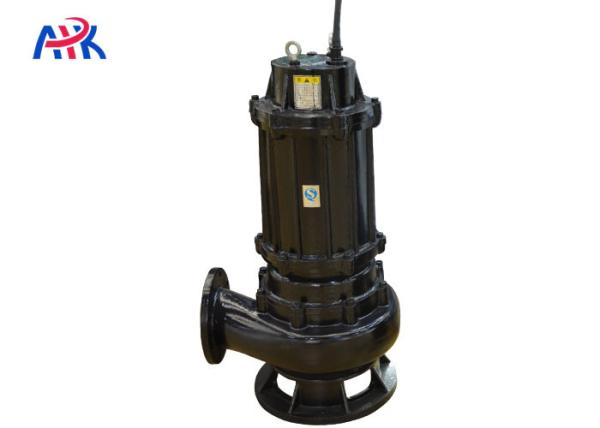

50m3h 22kw 30hp 55kw 75hp 75kw 100hp Nonclog Dirty Water Fecal
Submersible Sewage Pump
22kw 30hp 55kw 75hp 75kw 100hp sewage pump parameters:
| Outlet diameter | Types | Flow | Head | Power |
| mm | WQ series | m3/h | m | kw | hp |
| 100 | 100WQ80-40-22 | 80 | 40 | 22 | 30 |
| 100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 |
| 150 | 150WQ150-30-22 | 150 | 30 | 22 | 30 |
| 150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 |
| 200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 |
| 200 | 200WQ400-30-55 | 400 | 30 | 55 | 75 |
| 200 | 200WQ400-34-55 | 400 | 34 | 55 | 75 |
| 200 | 200WQ400-40-75 | 400 | 40 | 75 | 100 |
| 250 | 250WQ400-13-22 | 400 | 13 | 22 | 30 |
| 250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 |
| 250 | 250WQ500-25-55 | 500 | 25 | 55 | 75 |
| 250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 |
| 250 | 250WQ600-25-75 | 600 | 25 | 75 | 100 |
| 250 | 250WQ600-28-75 | 600 | 28 | 75 | 100 |
| 300 | 300WQ600-7-22 | 600 | 7 | 22 | 30 |
| 300 | 300WQ700-19-55 | 700 | 19 | 55 | 75 |
| 300 | 300WQ800-15-55 | 800 | 15 | 55 | 75 |
| 300 | 300WQ800-20-75 | 800 | 20 | 75 | 100 |
| 300 | 300WQ1000-20-75 | 1000 | 20 | 75 | 100 |
| 350 | 350WQ1100-10-55 | 1100 | 10 | 55 | 75 |
| 350 | 350WQ1100-12-55 | 1100 | 12 | 55 | 75 |
| 350 | 350WQ1100-16-75 | 1100 | 16 | 75 | 100 |
| 350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 |
| 400 | 400WQ1500-10-55 | 1500 | 10 | 55 | 75 |
| 400 | 400WQ1500-12-75 | 1500 | 12 | 75 | 100 |
| 500 | 500WQ2000-7-55 | 2000 | 7 | 55 | 75 |
| 500 | 500WQ2000-8-75 | 2000 | 8 | 75 | 100 |
submersible sewage pump is power irrigation equipment united by the
motor and the pump, especially the swirling impeller and
double-channel impeller matched with spiral type centrifugal pump
body, which have strong drainage capacity.
1. Outlet diameter: 100mm 150mm 200mm 250mm 300mm 350mm 400mm 500mm
2. Power: 22kw 30hp 55kw 75hp 75kw 100hp submersible sewage pump
3. Flow: 80-2000m3/h
4. Head: 7-40m
5. Material: Cast iron or stainless steel 304/316/316l/duplex
stainless/904l
6. Speed: 1450rpm 2900rpm 3450rpm
submersible sewage pump is widely used in construction site,
basement and factory.
submersible sewage pump can be customized with 304/316 stainless steel type, high temperature resistent type and cutting impeller type.
submersible sewage pump stainlesss steel type:
high temeprature submersible sewage pump type:
FAQ:
1.What is you MOQ?
our MOQ is 1 piece
2. Are you a trading company or a water pump manufacturer?
We are a water pump manufacturer for 23 years
3. What is your sewage pump type?
(1)submersible sewage pump type: non clogging sewage pump type;
cutter sewage pump type; stianlesss teel sewage pump type; high
temperature sewage pump; (2) dry sewage pump
4. How to know submersible sewage pump quality?
Professional submersible sewage pump manufacturers will test each
single every submersible pump, raw material testing, pump set
testing, testing video, testing report.
5. How to select a submersible pump type?
send an inquiry to enquiry02@apkpump.com/Whatsapp: +86 17537187726
or as below:
1. Application: clean water, sewage water, sea water, etc.
2. Material: cast iron/stainless steel 304/316/316L/duplex
stainless/904L(sole pump manufacturer in China)
3. Flow rate (m3/h, l/s)
4. Head lift (m)
5. Horsepower (hp) or kilowatts (kw)
6. Voltage and frequency: 380v/440v/480v/600v/660v/1140v.......3 phase
50hz/60hz
7. Attached pump accessories: cable length, control cabinet, frequency
converter, valve
6. How long do submersible pumps last?
Shenlong submersible pump can continue working more than 7 years if
you operate and maintain the submersible pump as the instruction.
