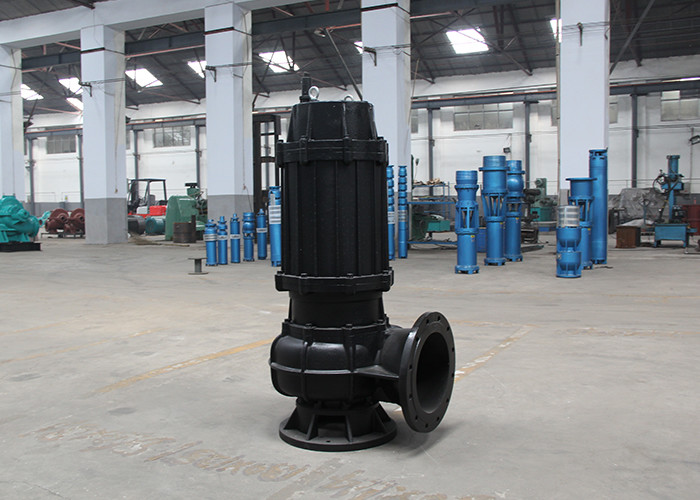

600m3/h flow 55kw 20 head WQ submersible sewage pump
600m3/h flow 55 power 20 head WQ submersible sewage pump for
industrial working conditions:
1. The temperature of the medium does not exceed 40°C, the density
of the medium is ≤1050kg/m, and the pH value is within the range of
4~10;
2. The altitude does not exceed 1000 meters. If it exceeds 1000
meters, please mention it when ordering;
3. The kinematic viscosity of the conveying medium is 3~6Pas;
4. Minimum operating liquid level: see H2 in the installation
dimension diagram, the pump must not be used below the minimum
liquid level:
5. The material of the pump is mainly cast iron, without special
order, it cannot be used to transport medium with strong
corrosiveness or strong corrosive solid particles:
6 The length of the fiber in the medium should generally not be
greater than the diameter of the outlet of the pump. The maximum
size of solids should not be larger than the values recommended in
the parameter table. Note: Before selecting a pump or installing
and using it, be sure to make the actual operating conditions of
the pump meet the
The above terms, ensure the correct use of the pump!
600m3/h flow 55kw 20 head WQ submersible sewage pump Performance
range:
Capacity:5-4500m3/h
Head:5-50m
Outlet diameter:φ25~φ600mm
Temperature:0~40℃
600m3/h flow 55kw 20 head WQ submersible sewage pump Application:
Raw waterrain water
Municipal and industrial waste water
Sewage treatment
Construction
Other industrial applications
600m3/h flow 55kw 20 head WQ submersible sewage pump Features:
1. The unique single-piece or double-blade impeller structure
greatly improves the passing capacity of the dirt, and can
effectively pass through fibrous materials 5 times the diameter of
the pump and solid particles whose diameter is about 50% of the
pump diameter.
2. The mechanical seal adopts new hard and corrosion-resistant
titanium tungsten material, which can make the pump run safely and
continuously for more than 8000 hours.
3. The overall structure is compact, the volume is small, the noise
is low, the energy-saving effect is remarkable, and the maintenance
is convenient. There is no need to build a pump room, and it can
work when submerged in water, which greatly reduces the project
cost.
4. According to the needs of users, it can be equipped with a fully
automatic control cabinet to automatically protect the pump from
water leakage, leakage overload and over temperature, which
improves the safety and reliability of the product.
5. QW submersible sewage pump can be equipped with double guide
rail automatic coupling installation system according to user
needs, which is convenient and simple to install and maintain.
6. There are two different installation methods, fixed automatic
coupling installation system and mobile free installation system.
It is precisely because of the above characteristics that sewage
pumps have been paid more and more attention by people, and the
scope of use has become wider and wider. From the original simple
use to transport clean water to the current ones that can transport
various domestic sewage, industrial waste water, construction
sites, etc. Drainage, liquid feed, etc. It plays a very important
role in various industries such as municipal engineering, industry,
hospital, construction, restaurant, water conservancy construction
and so on.
In addition to the 600m3/h flow rate 55kw 20 head WQ submersible
sewage pump, we can also provide various submersible sewage pumps
with a flow rate of 600m3/h. Their parameters are as follows:
| Model | Capacity (m3/h) | Head (m) | Power (kw) |
| 250WQ600-9 | 600 | 9 | 30 |
| 300WQ600-12 | 600 | 12 | 37 |
| 300WQ600-15 | 600 | 15 | 45 |
| 0300WQ600-20 | 600 | 20 | 55 |
| 300WQ600-25 | 600 | 25 | 75 |
| 300WQ600-15 | 600 | 15 | 45 |
| 300WQ600-20 | 600 | 20 | 55 |
If you need any type and type of submersible sewage pump, please
contact us. Our email is enquiry02@apkpump.com Our Whatsapp is+86
17537187726.
