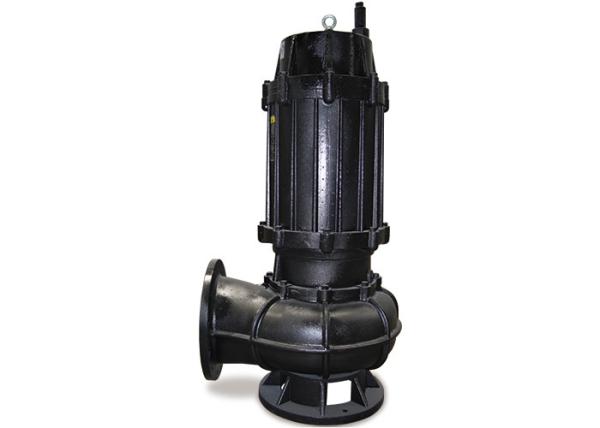

WQ Flow 5-4500m3/h Cast Iron Raw Rain Water Wastewater Submersible Sewage Pump

WQ submersible sewage pump overview:

WQ submersible sewage pump is sewage pump developed on the basis of the introduction of foreign advanced technology.

WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have strong drainage capacity.

• Type: WQ series sewage pump
• Power: 2.2kw-220kw
• Voltage: 380v/440v or customized
• Frequency: 3 phase 50hz/60hz
• Flow: 5-4500m3/h
• Head: 5-200m
• Material: Cast iron or stainless steel

WQ submersible sewage pump applications:

• Raw water, rain water

• Municipal and industrial waste water

• Sewage treatment

• Construction

• Other industrial applications

WQ submersible sewage pump features:

• Compact structure, easy to use, easy installation
• Specially adopting cyclone type and double flow type impeller, strong pollution discharge capacity.
• The motor adopt hard corrosion-resistant single and double end face ceramic seal, good anti leakage effect, the motor running more safe and reliable.

WQ submersible sewage pump overview:

WQ submersible sewage pump parameters:

If these submersible sewage pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable pump model for you.

WQ submersible sewage pump using condition:

1. Voltage 380V or 660V (allowance error: 5%), 50Hz, three-phase alternating-current supply
2. solid material volume ratio in pumped medium should be below 2%, Maximum pumped medium density is 1.2*103kg/ m3
3. PH value should be 4-12
4. Temperature should be not less than 50℃

Customer Case

1. Flow: 300m3/h

2. Head: 20m

3. Power: 37kw

4. Frequency: 380v/60hz

Our sewage submersible pump has beed worked for 11 years !

    Zhengzhou Shenlong Pump Industry CO.,Ltd, a professional reputable ODM OEM water pump manufacturer in China since 1996, recognized by CE and ISO, ABS, SGS, BV.

  Main products: Electric Submersible Pump for pumping clean water, hot water and sea water with bronze, SS304, SS316, SS316L, Dupex stainless/SS904L; Mine Submersible Pump/Submersible Motor/Sewage Submersible Pump/Slurry Submersible Pump/Fountain Submersible Pump/Axail Flow Submersible Pump/Surface Centrifugal Water Pump. Related business: kinds of water pipes, cables, control panels, inverter and other pump spare parts.

   Over 70 countries’ customers are enjoying our pumps and service. Our pumps are widely used in fields, such as seawater aquaculture & desalination, offshore, jack-up, floating dock, shipyard, irrigation, wastewater treatment, fountain projects. We are seeking for local water pump service business and dealer who is professional in water pumps. Welcome to join us.

    Zhengzhou Shenlong Pump Industry CO.,Ltd has three complete casting lines, including Expendable casting process, wax casting mold, coated sand, it can meets the different requirements on the dimensional accuracy of casting. The wax casting mold line, special for stainless steel material, was finished in the thermostatic workshop to guarantee the casting accuracy, meanwhile, shorten the whole production time.

  More than 85 sets production machine, includes grinding machine, CNC, lathe, Milling, High speed punch press machine, testing machine, etc., with sufficient spare parts stock to guarantee the production capacity 11,000 sets per month. From material purchase, metalworking, impeller dynamic balance, motor winding, insulation and pump assembling, passed more than 27 inspection processes, to ensure the quality meet a criterion.
